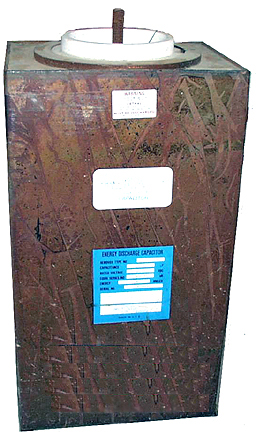

Version #2 1 x 7.14uF-50,000V = 8925 Joules |
|||
 |
|||
|

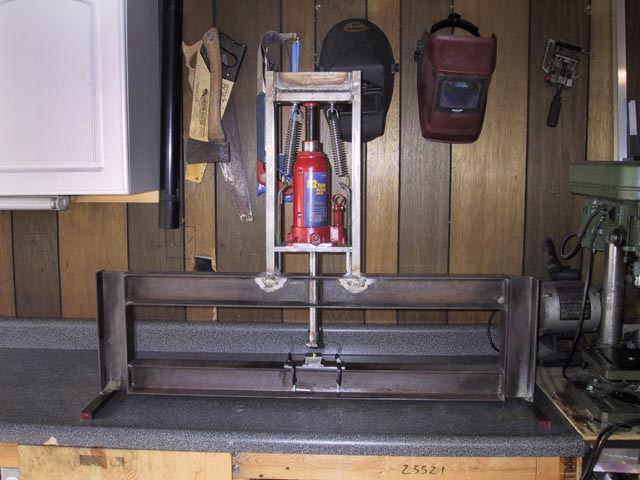

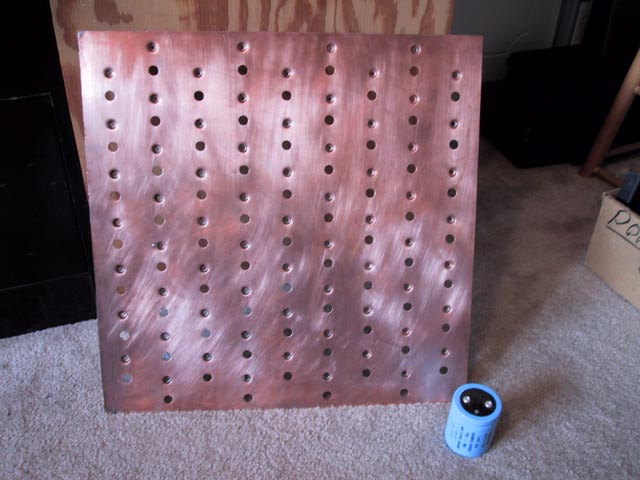

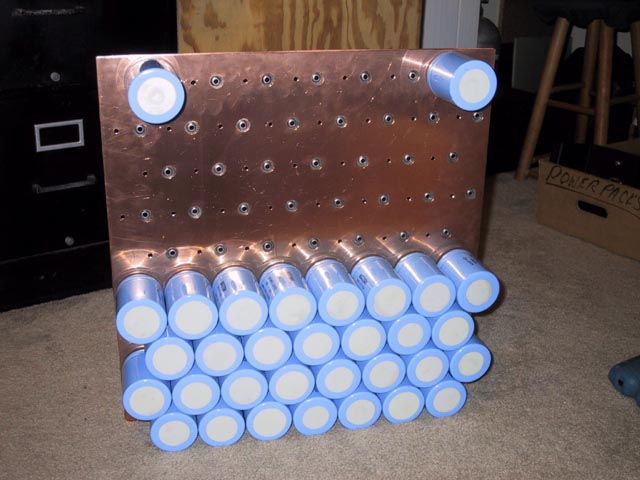

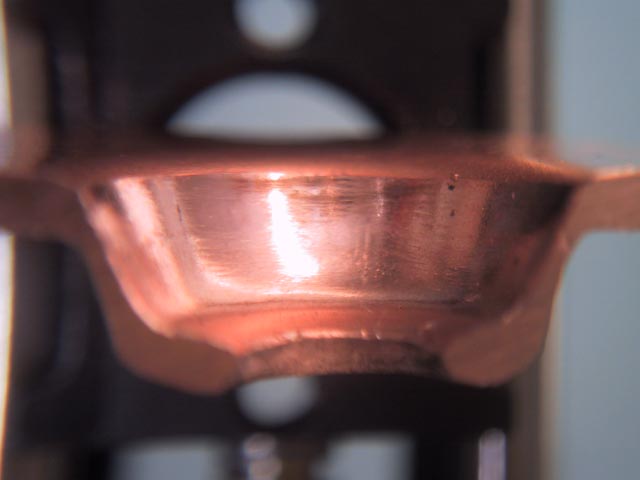

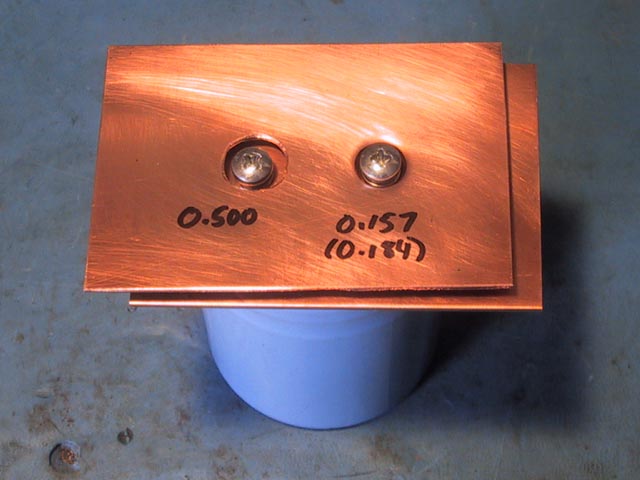

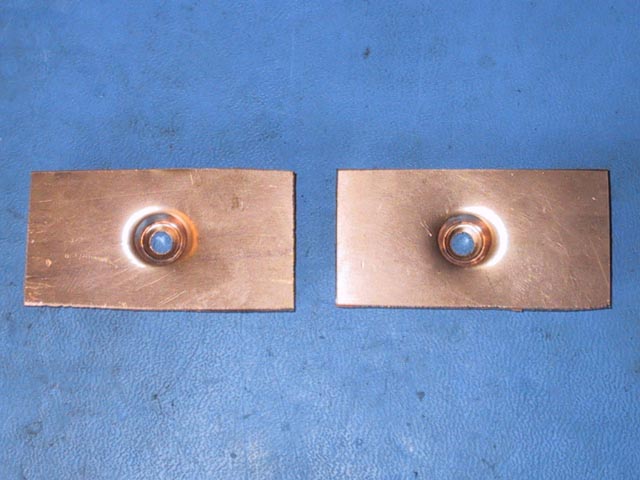

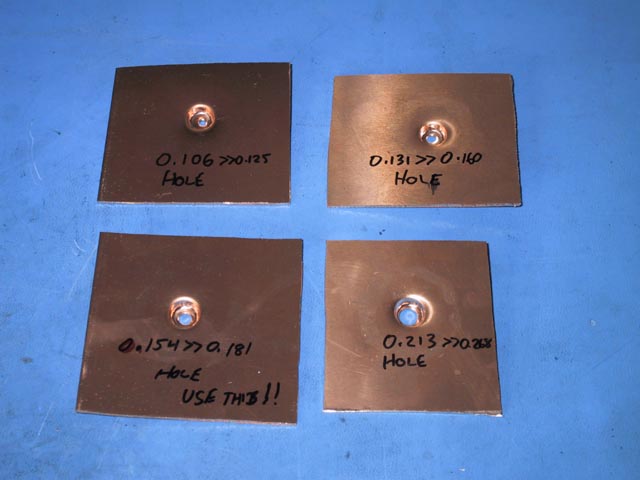

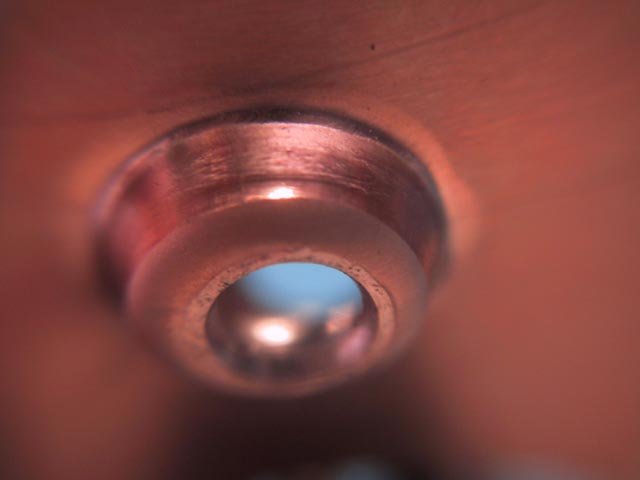

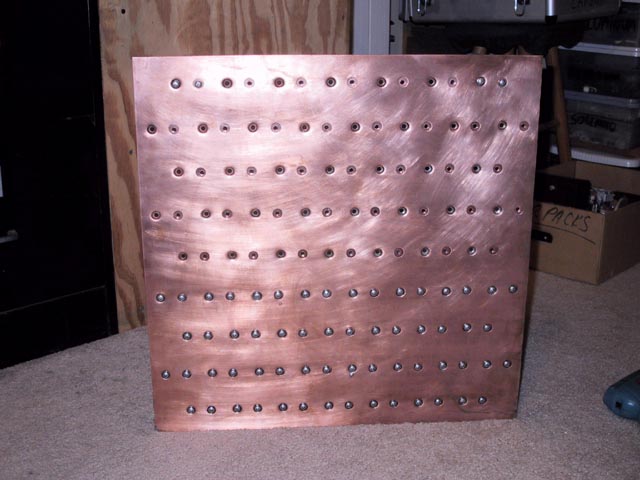

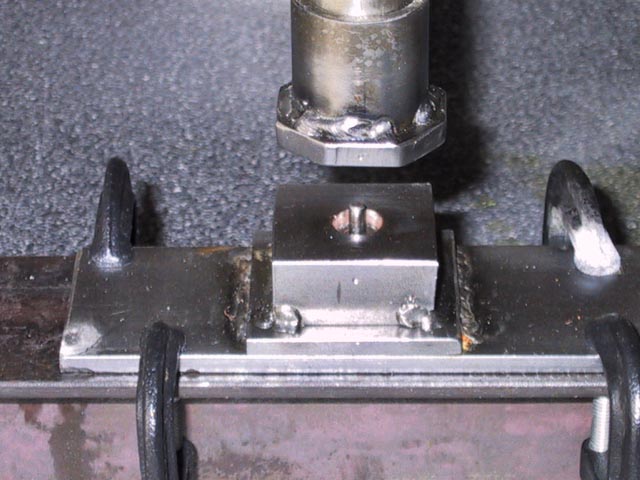

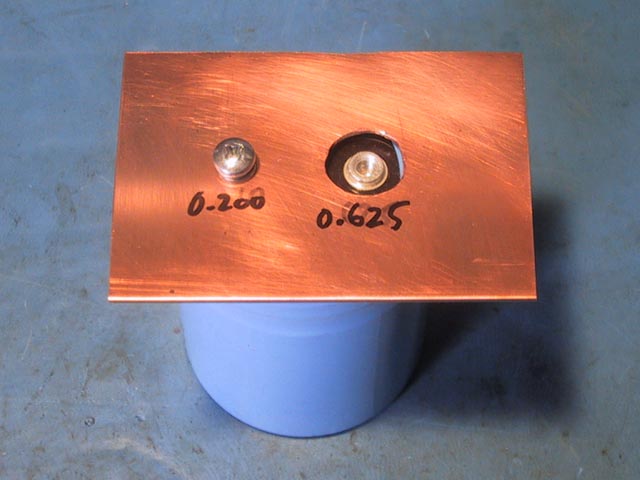

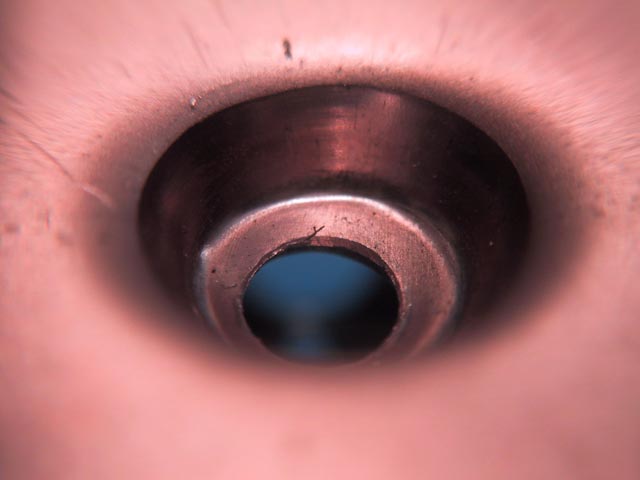

Version #1 Electrolytic Capacitor Plate 67 x 3300uF-240V = 6367 Joules |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 Happiness is 40 pounds of #11 magnet wire! |
|
|

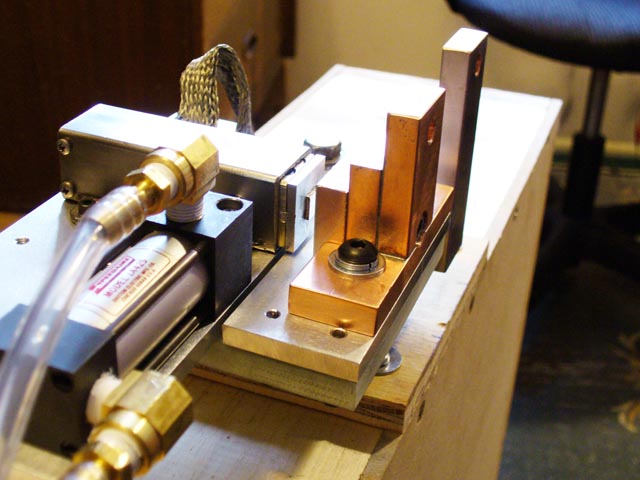

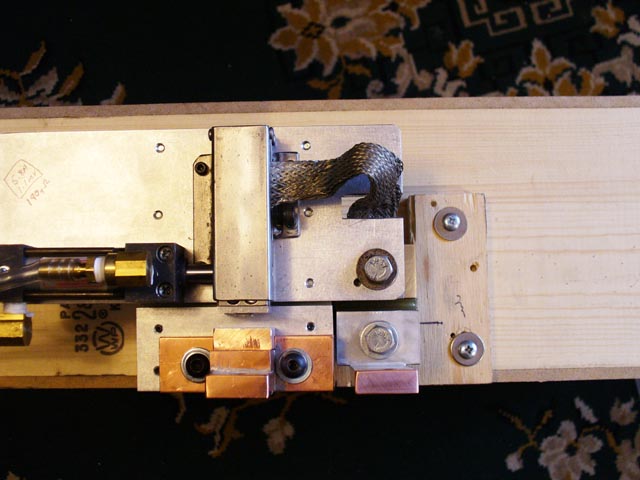

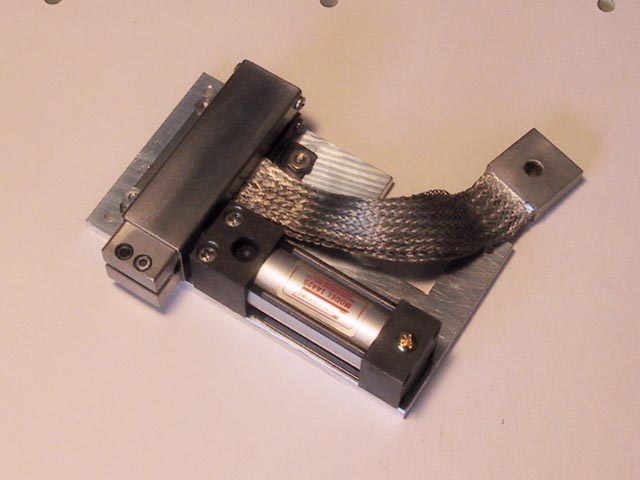

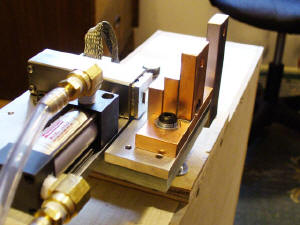

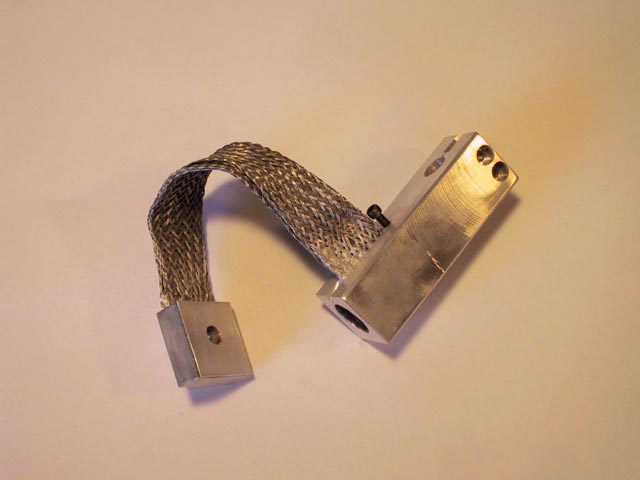

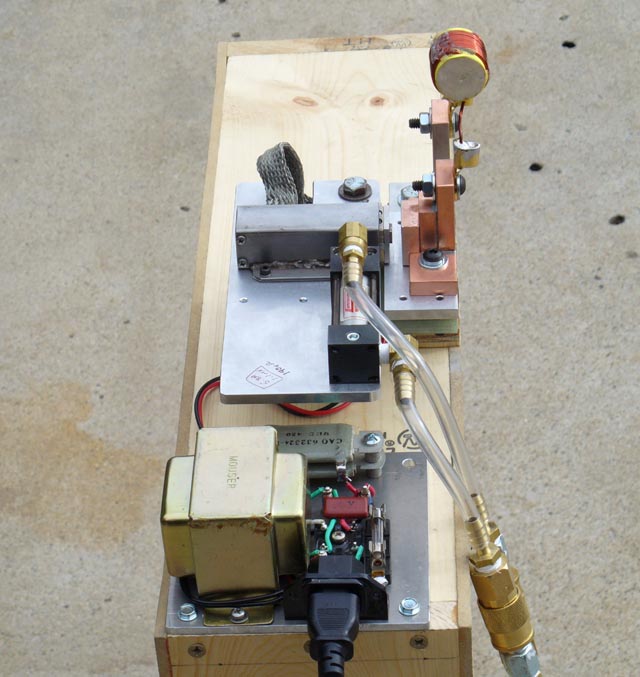

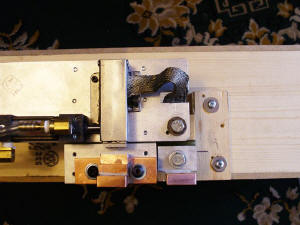

Air Activated Switch 75uOhms |
|||
 |
 |
 |
 |
 |
|||

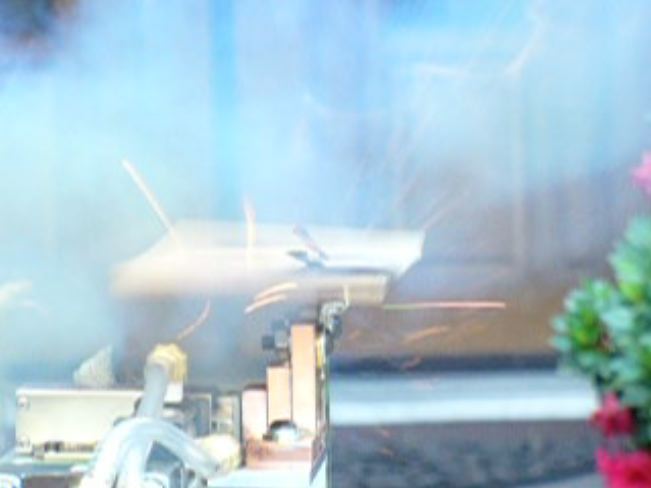

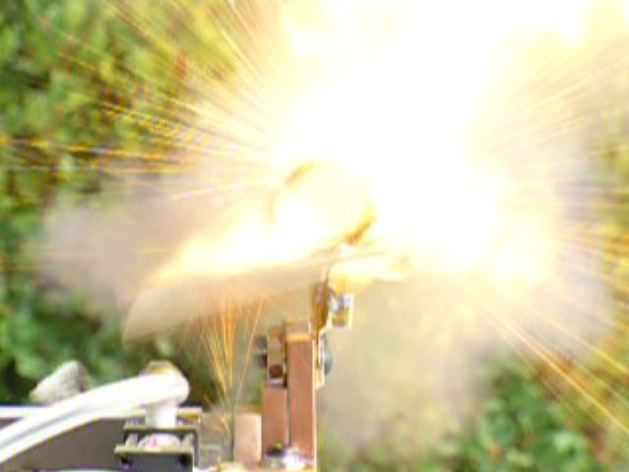

| Shots | |||
|

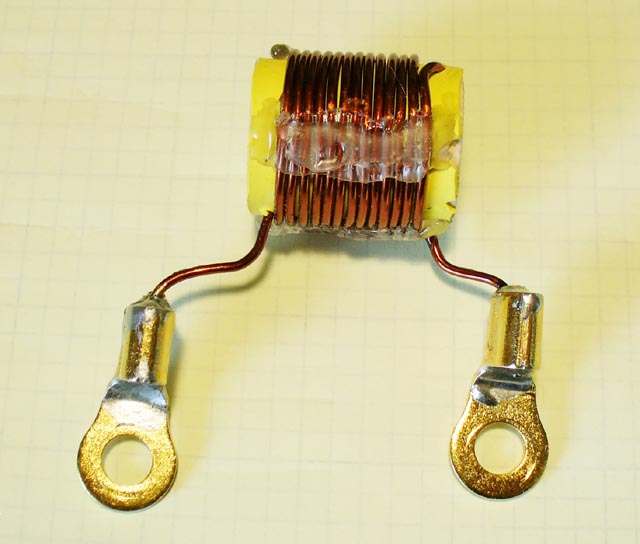

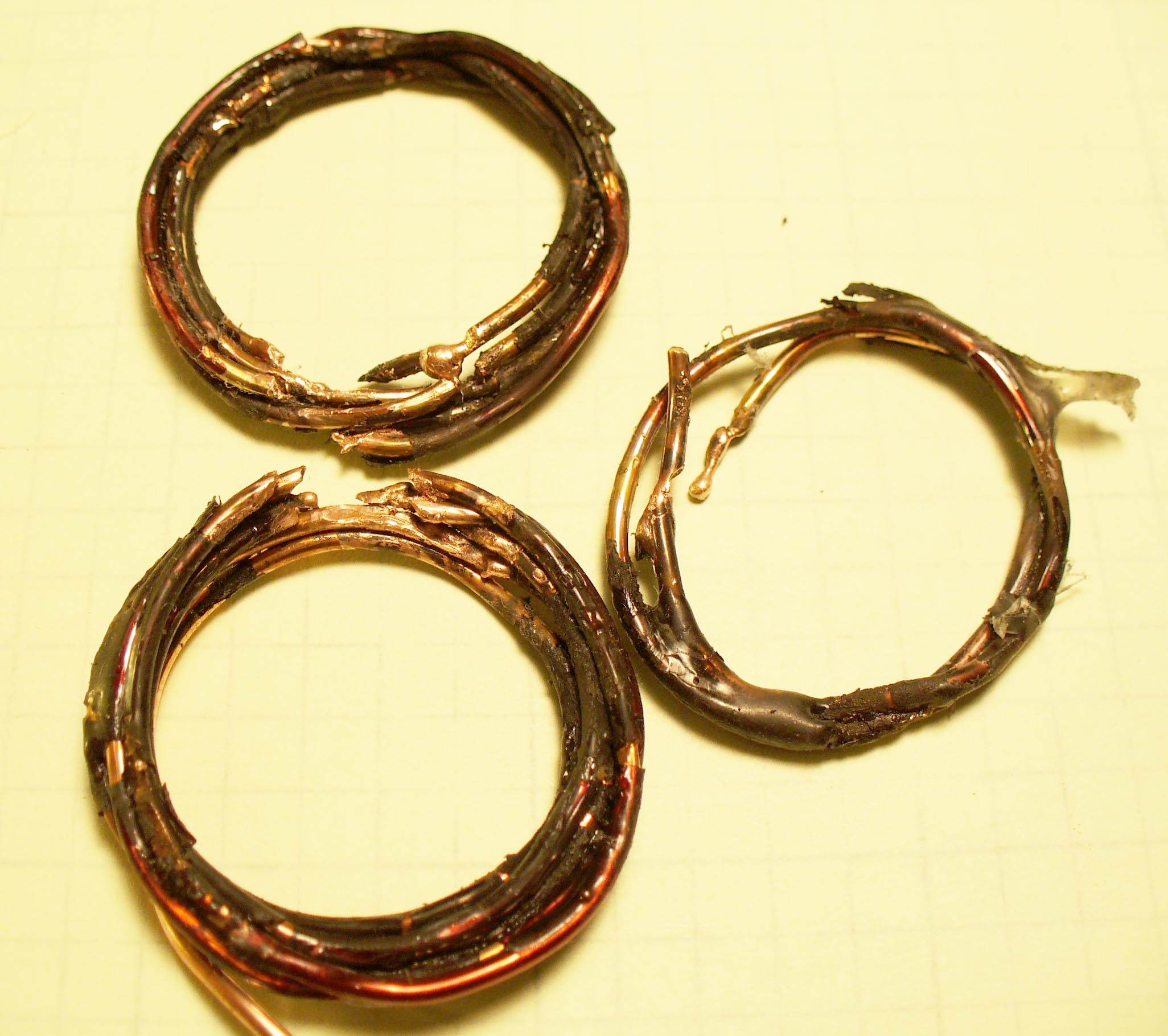

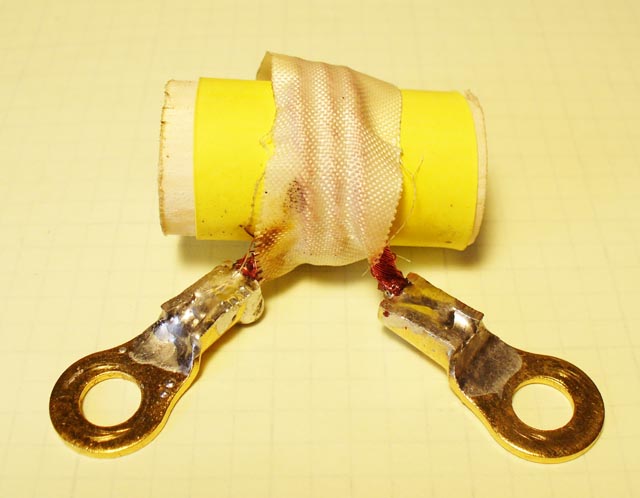

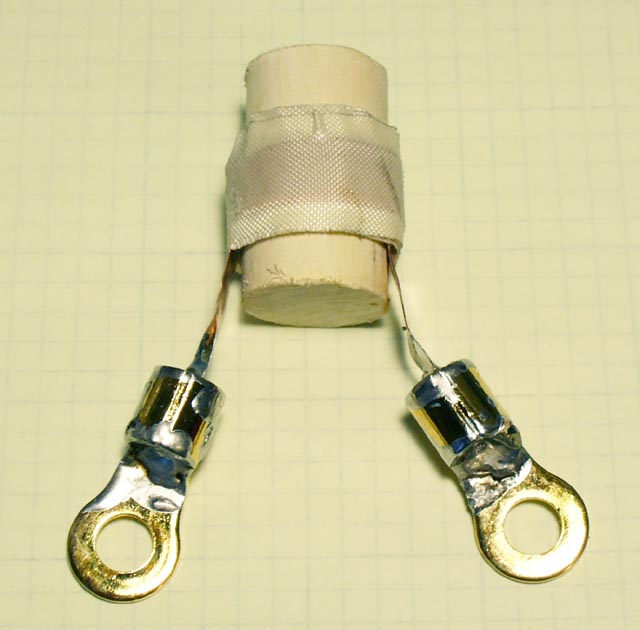

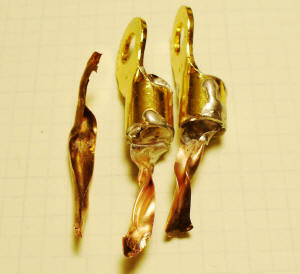

-14 turns of #14 polythermalese magnet wire around a quarter. -Begin: 225vdc, End: 220vdc. -No shrinking achieved. |
 |
 Movie |
 |
|

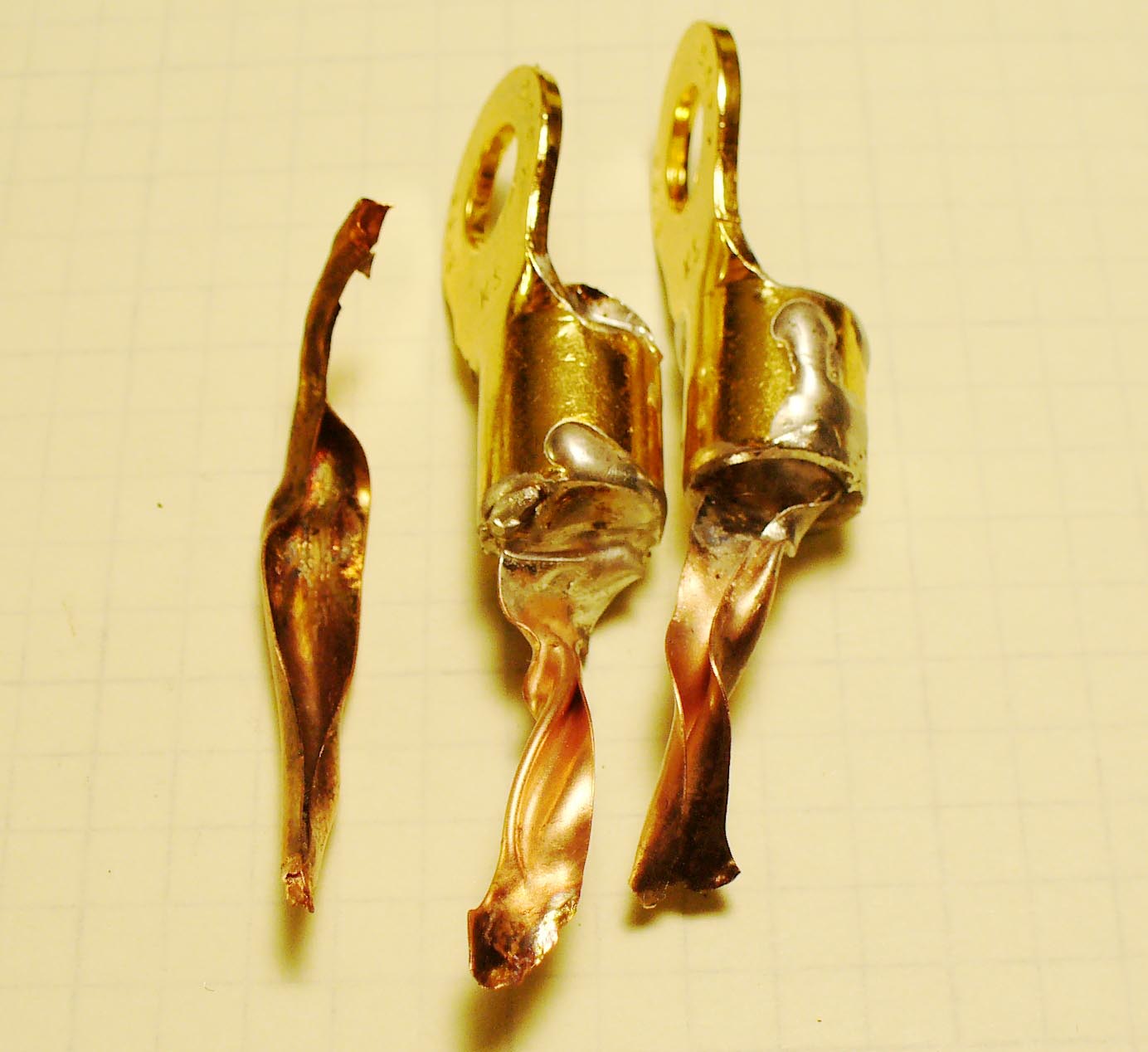

-3 turns of 0.500 x 0.010" copper ribbon around a
nickel. -Begin: 225vdc, End 205vdc. -Ribbon was folded in half. -No shrinking achieved. |
 |
 Movie |
 |
|
-3 turns of #32 x 100 nylese magnet wire around a nickel. -Begin 225vdc, End 142vdc. -No shrinking achieved. |
 |
 Movie |
 |
