Nixie and other Gas Plasma Displays |
|||||
Model | Tube Images | Character (Inches) | Notes | ||
H | W | Symbols | |||

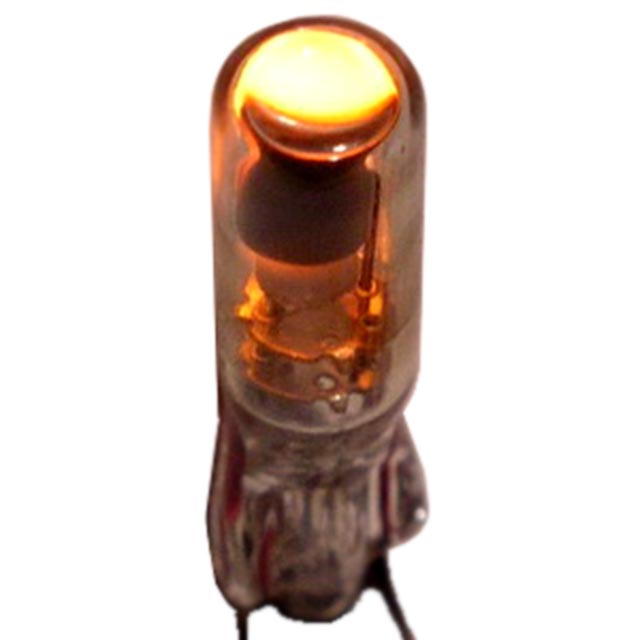

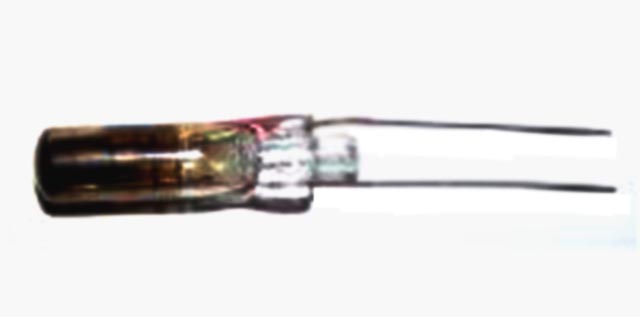

INS-1 |
![]() ![]() |
0.256 (Dia) |
--- | Dot | Tube is 1.102" long, anode lead painted red |

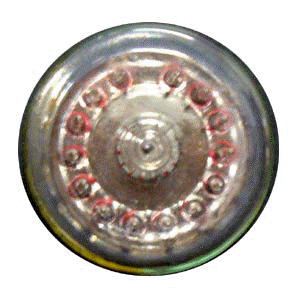

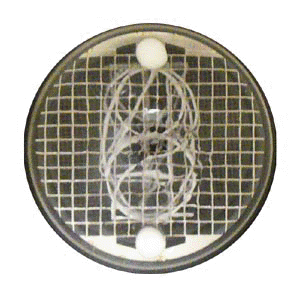

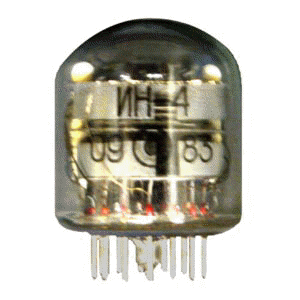

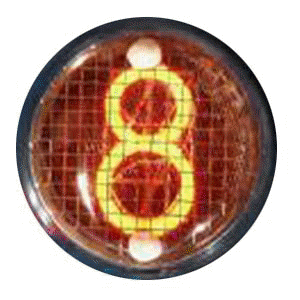

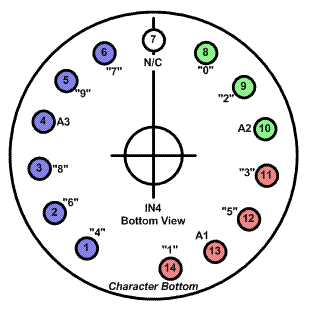

IN4 |
![]() ![]() ![]() ![]() |
0.675 | 0.465 |
0,1,2,3,4,5,6,7,8,9 RHDP,LHDP |
5 is upside down 2, 3 separate anodes |

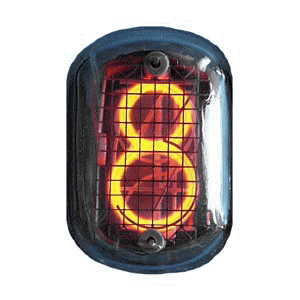

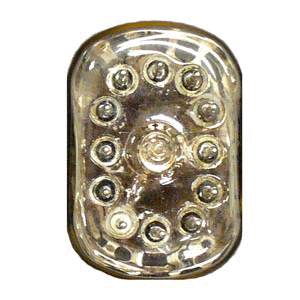

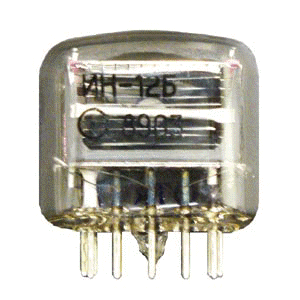

IN12B |
![]() ![]() ![]() ![]() |
0.700 | 0.430 |

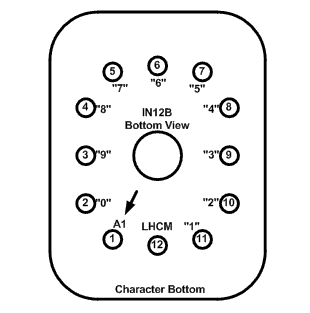

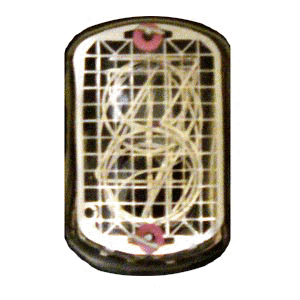

0,1,2,3,4,5,6,7,8,9 LHCM |
5 is upside down 2, IN12A does not have LHCM. (Inter Digit Coupling) |

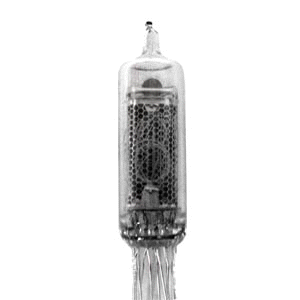

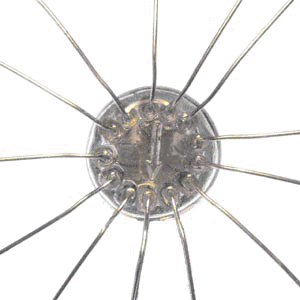

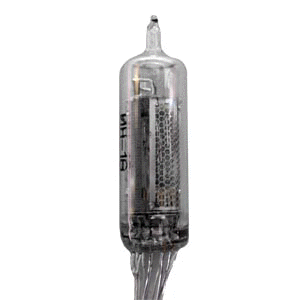

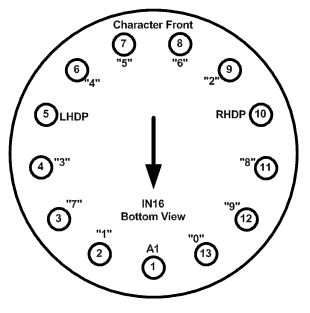

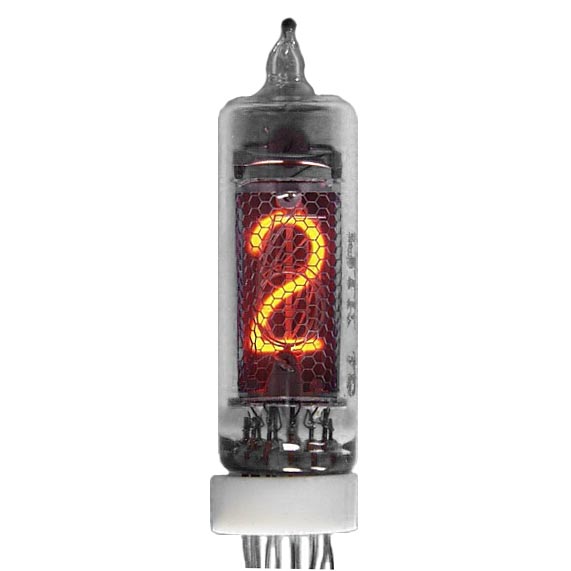

IN16 | 0,1,2,3,4,5,6,7,8,9 | ||||

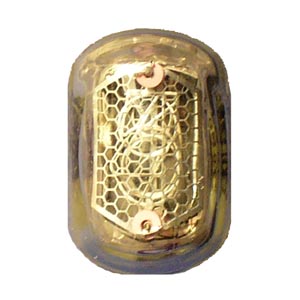

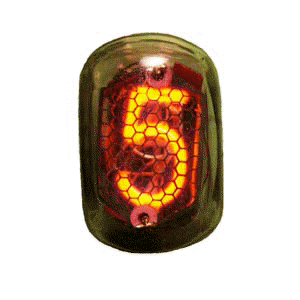

IN17 |
![]() ![]() ![]() ![]() |

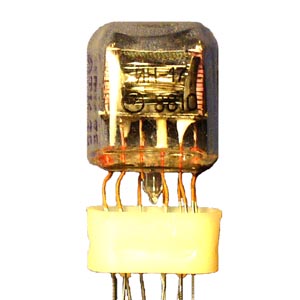

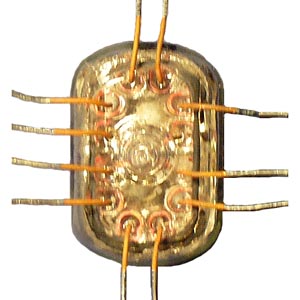

0.350 | 0.200 | 0,1,2,3,4,5,6,7,8,9 | |

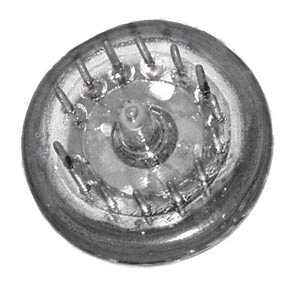

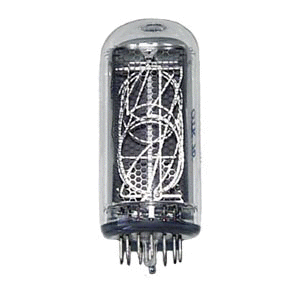

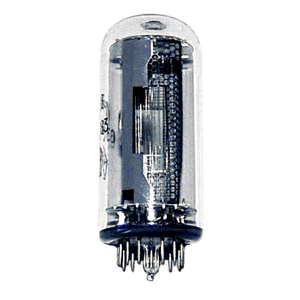

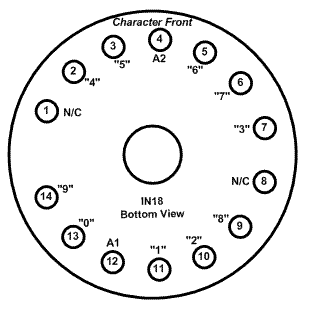

IN18 |
![]() ![]() ![]() ![]() |

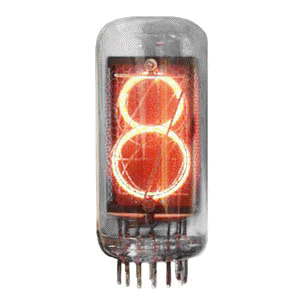

0,1,2,3,4,5,6,7,8,9 | |||
Panaplex | 7 Segment | ||||

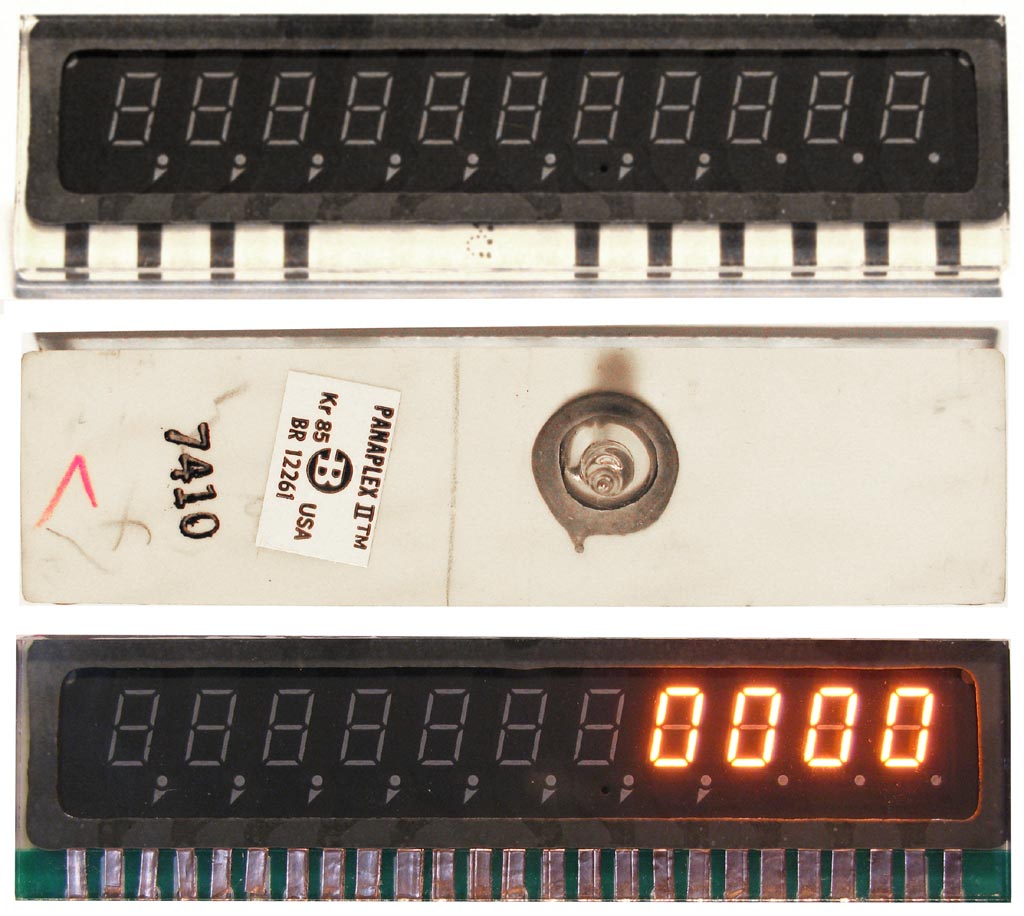

BR12261 |
![]() |
0.250 | 0.170 | 11 digit multiplexed 7 segment, LHDP, LHCM | Right most 3 digits do not have commas. |

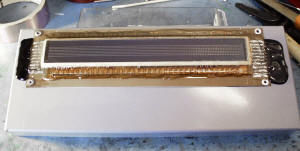

SelfScan |
![]() ![]() |

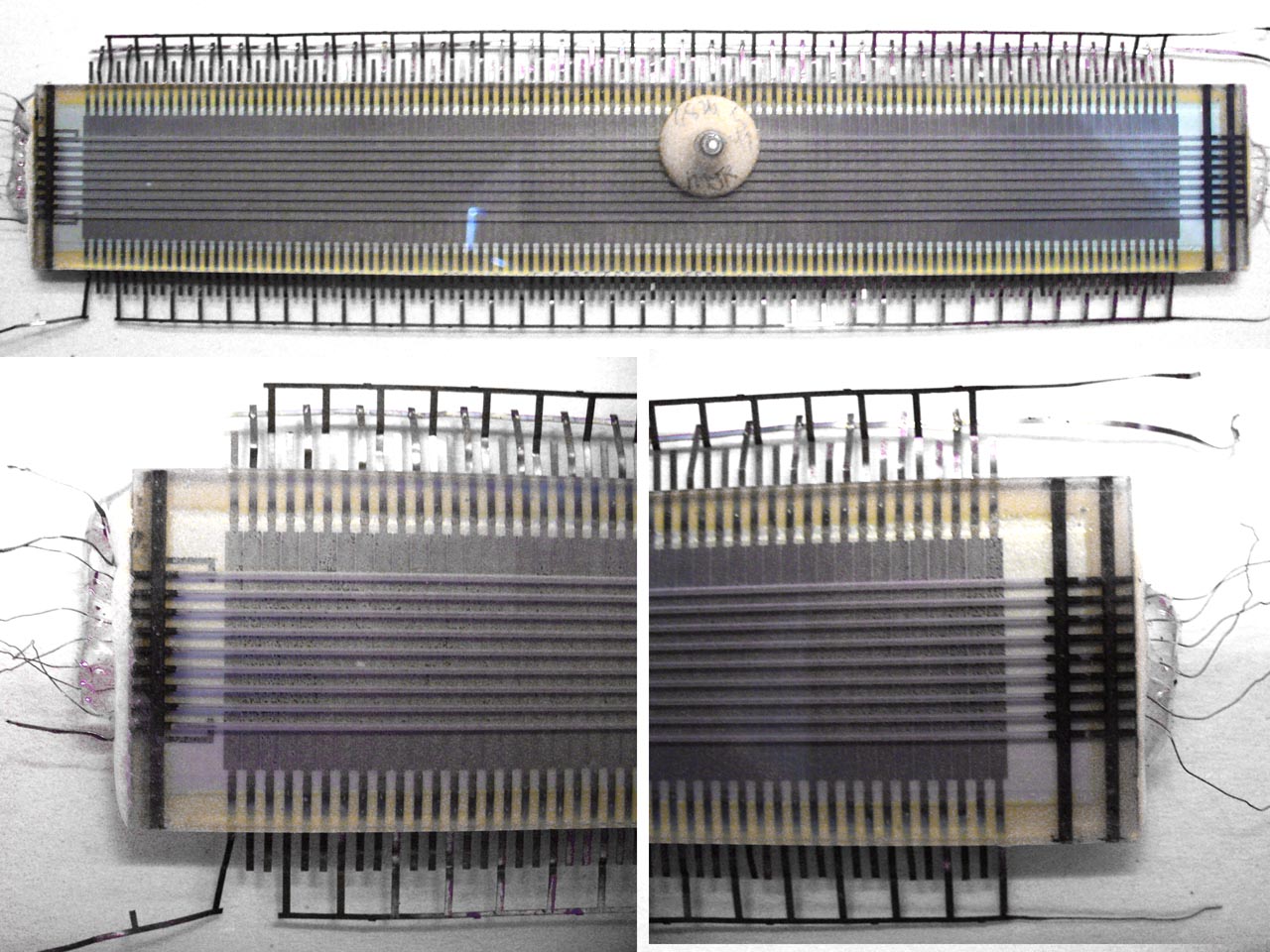

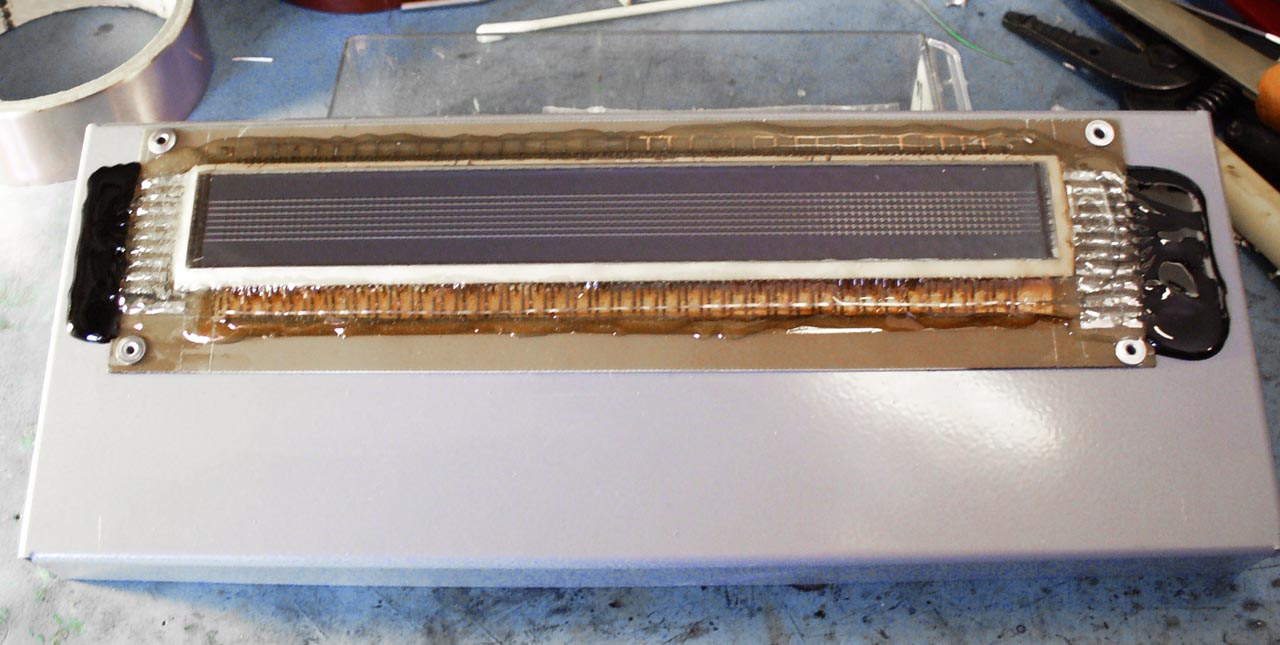

--- | --- | Dot matrix | Burroughs patented self shifting display, only requires 7 anodes (Rows) and 4 cathodes (Columns) to access any number of pixels. Display can shift left or right by reversing the sequence of the cathode drivers. |
Nixie Accessories |
|||||

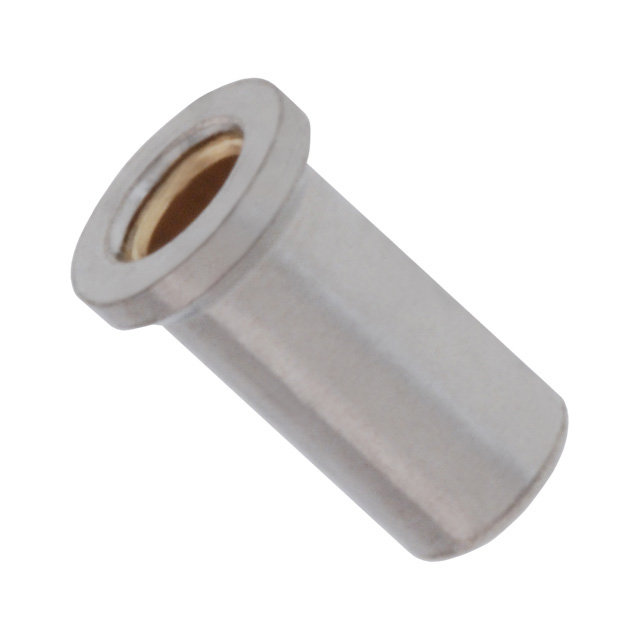

Socket | MillMax 0331-0-15-01-18-27-10 machine pin sockets for 0.97mm (IN12 etc) nixie tube pins (Digikey, $0.134 @ 1K) | ||||
Socket | Harwin H3161-01 machine pin sockets for 1.02mm diameter nixie tube pins (Farnell, $0.182 @ 1K) | ||||

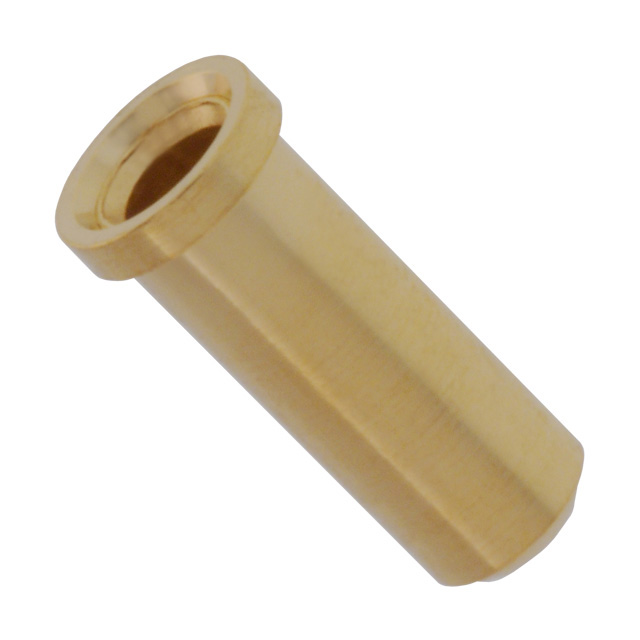

Socket | MillMax 0327-0-15-15-34-27-10-0 machine pin sockets for 1.02mm diameter nixie tube pins (Digikey, $0.166 @ 1K) | ||||
Glossary |
|||||
RHDP | Right Hand Decimal Point | ||||
LHDP | Left Hand Decimal Point | ||||
RHCM | Right Hand Comma | ||||
LHCM | Left Hand Comma | ||||
RHC | Right Hand Colon | ||||
LHC | Left Hand Colon |
